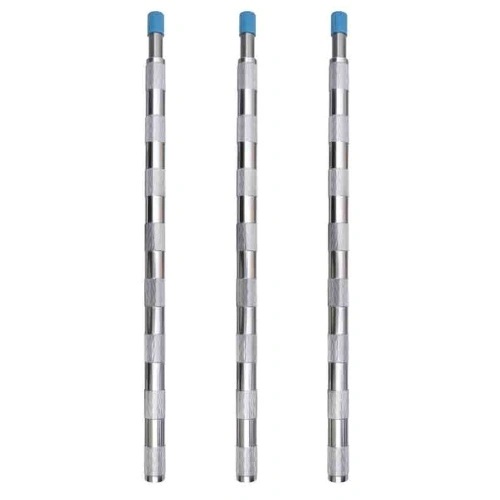

Spinning Bottom Rollers

FEATURES

Produced using a diverse combination of raw materials, including high carbon, silicon, sulfur, nickel, chromium, and copper. The product features a range of surface finishes, from smooth to textured, tailored to specific application requirements..

Easy and fast jointing system: No additional tools required for assembly, enabling quick setup.

Excellent dimension stability: Maintains precise dimensions even under operational conditions.

Suitable for textile bearings: Optimized for use in textile machinery requiring reliable support.

High-speed capability: Bottom rollers are designed to operate effectively at high speeds.

Unique fine textured surfaces: Surface design enhances performance and stability during operation.

APPLICATIONS

Our Bottom Rollers range is ideal for any brand of spinning machinery, providing reliable performance and durability to enhance your production efficiency.

rubber

Product List - Bottom Rollers

SR. NO DESCRIPTION TYPE OF MACHINE DIAMETER SPINDLE GUAGE SPINDLE BEARING TYPE MOQ
CNIP-01 Textile - Spinning Bottom Rollers FA502, FA503, FA506, 507A, 507B, FA528, FA1508, JWF1510, 1516, 1520, 1530, EJM128A, 128K, 128JL, 138JL, 178JL, DTM129, 139, 149, 159, 189, BS516, 518, 520J, SXF1568, 1578, 1588, 1598, ZJ1218, 1298, A512, 512A, 512B, 512C, A513E. 25 70 6 PSI 2822 50
CNIP-02 Textile - Spinning Bottom Rollers A513 C513 F513W 25 & 27 70 8 PSI-3224 PSI-16.5 PSI-19 50
CNIP-03 Textile - Spinning Bottom Rollers A515 515A FA504 25 66.68 6 PSI-3224 PSI-16.5 PSI-19 50
CNIP-04 Textile - Spinning Bottom Rollers 1291 1292 1293 1294 25 TO 27 66.67 - 66.68 8 PSI-3224 PSI-16.5 PSI-19 50
CNIP-05 Textile - Spinning Bottom Rollers JWF1418A 25 108 4 50
CNIP-06 Textile - Spinning Bottom Rollers FA402 FA454 FA457 25 - 28 90 4 50
CNIP-07 Textile - Spinning Bottom Rollers FA401 FA456 FA458A JWF1415 1416 28 108 4 50
CNIP-08 Textile - Spinning Bottom Rollers FA415 25-28 110 4 PSI-3224 50

Product List – Roving Frame Bottom Rollers

SR. NO DESCRIPTION TYPE OF MACHINE DIAMETER SPINDLE GUAGE SPINDLE BEARING TYPE MOQ
CNIP-01 Textile - Roving / Speed frame Bottom Rollers FA415A HY490 492 FA421A THFA4421 FA416 25-28 97 4 PSI-2822 50
CNIP-02 Textile - Roving / Speed frame Bottom Rollers FA422 FA425 FA471FA494 FA496 FA498 28.5 110 4 50
CNIP-03 Textile - Roving / Speed frame Bottom Rollers FA467 28.5 110 4 50
CNIP- Textile - Roving / Speed frame Bottom Rollers JXFA488 BHFA 498 28.5 110 4 50
CNIP- Textile - Roving / Speed frame Bottom Rollers ASFA411 HY490 491 492 FA420 FA423A 28.5 110 4 50
CNIP- Textile - Roving / Speed frame Bottom Rollers TFFA4423 FA426A FA493 FA497 FA468 28.5 97 4 50
CNIP- Textile - Roving / Speed frame Bottom Rollers JXFA487 BHFA497 31.7 As per customer design 4 50
CNIP- Textile - Roving / Speed frame Bottom Rollers FB502 FB505 B583 B585 35 75 6 50

Product List – Wool Spinning Bottom Rollers

SR. NO DESCRIPTION TYPE OF MACHINE DIAMETER SPINDLE GUAGE SPINDLE BEARING TYPE MOQ
CNIP-01 Textile - Wool Spinning Bottom Rollers FB502 FB505 B583 B585 35 75 6 PSI-3224, PSI-3624, PSI-22 50
CNIP-02 Textile - Wool Spinning Bottom Rollers FB 504 35 82.5 6 PSI-3624 50
CNIP-03 Textile - Wool Roving Spinning Bottom Rollers FB471 FB494 32-38 110 4 PSI-22 50
